EM116
PORTABLE OSCILLOMETER, EM116 示波器 功能簡介

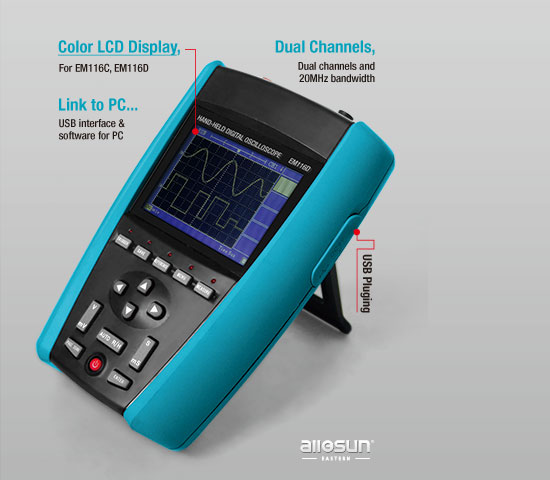

This unit is a portable oscillometer with the advantages of light weight, small size and the dual-channel color LCD display. It features bandwidth 20MHz, RS232 interface output, waveform and data storage, waveform measurement, frequency measurement , voltage measurement. It is very precise and easy-to- operate. It is a very useful tool in various fields of electronic industry.
規(guī)格參數(shù)
1. Dual-channel color LCD large display 2. Touch key 3. Digit bandwidth 20MHz. Bandwidth 25MHz when it cooperates with computer 4. 8k memory for every channel 5. Vertical sentivity: 50mV-5Vdiv Time base range: 50ns-2s/div 6. Can store and display 10 groups of waveforms and 10 groups of settings 7. Voltage, frequency and other measurements available 8. Built-in FFT frequency meter 9. Built-in RS232 communication module, 8M flash memory module 10. Chinese language menu on the display 11. Power supply: 6V (1.5VX4 battery), external power supply permitted.
附件
Li Battery(installed) AC/DC power Adapter Scopemeter Probes Multimeter Test leads Users Manual
|
